Process management Iterations-tab

Content

In the Iterations-tab, you can configure settings for iteration levels.

1. Definitions

Iteration: An iteration is an iteration level created during a signature request to add external or internal signatories.

1.1. The Iteration-tab in process management

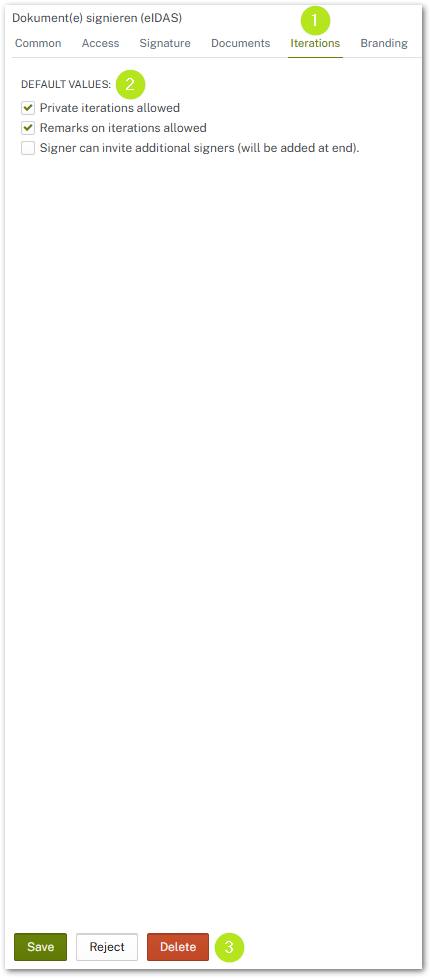

To open the Iteration tab in process management, go to the administration area and open process management. Then click on the base process you want to edit or create a new one. You can configure the iteration level under the Iterations-tab (see figure 1 [1]).

XiTip
Please note: The options shown in this tab depend on the basic configuration of MOXIS, which was created in collaboration with XiTrust. Therefore, you may see fewer options in your overview. If one of the options would be a useful addition to your current MOXIS instance, please contact your XiTrust contact person.

You have the following options for configuring the decision levels of the process:

1. Allow/deny private iteration (see figure 1 [2])

2. Allow/deny comments on iterations (see figure 1 [2])

3. Allow signatories to invite additional people (see figure 1 [2])

4. Use the [Save]-, [Reject]-, or [Delete]-buttons to save, discard, or delete your changes (see figure 1 [3]).

1.2. Private iteration allowed

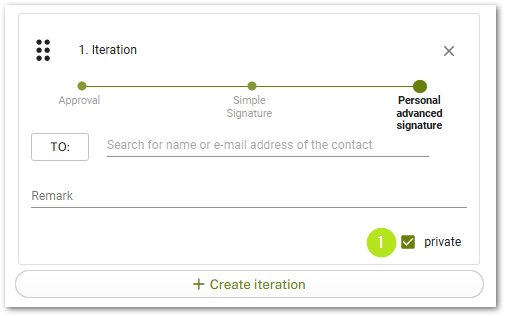

Enable this option to allow signers to set an iteration level to private (see figure 2 [1]). As long as the option is enabled in process management and the check mark is set to Private in MOXIS, even users with the role of an observer cannot view the specific task. In addition, signers cannot be represented at this iteration level. Please note: This only applies to iteration levels where the check mark is set.

1.3. Comments on iteration allowed

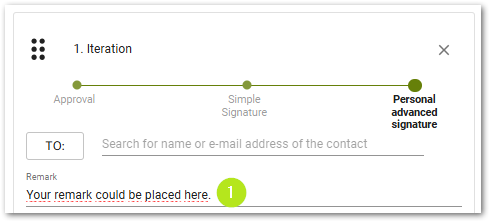

Enable this option to allow signers to leave comments in decision levels (see Figure 3).

XiTip
Please note: Starting with MOXIS 4.53, comments on iterations are also possible in MOXIS Guest for jobs with external iterations. The checkbox must also be selected here for external iterations.

1.4. Signer may invite additional persons

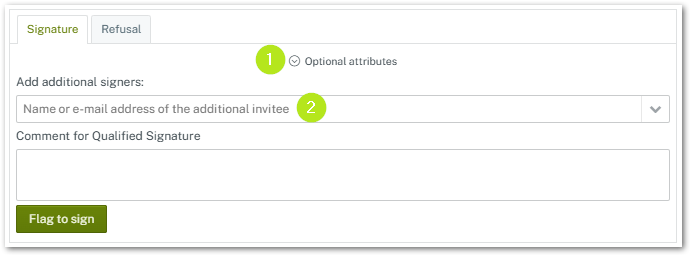

This option allows signers to invite additional persons to the job before signing (see figure 4). Once you have checked this option, please open a job that you have received but not yet signed. In the detail view of the job, please navigate to the comments and open the optional attributes (see figure 4 [1]). Here you can now add additional recipients (see figure 4 [2]).

1.5. OPTIONAL: Enable the serial function

This option allows you to send a job to a group of recipients. However, this requires some preliminary settings, which we describe in the following instructions.

XiTip
Please note, that the serial function has to be activated in the initial configuration. Otherwise, it is not visible in the iterations-tab (see figure 1).

1.5.1. Step-by-step instructions: Activating the serial function in process management

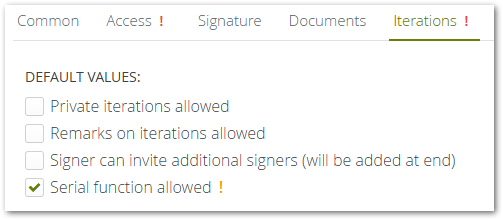

Step 1: To activate the serial function in process management, first select the option in the iteration tab in your desired process (see figure 5).

XiTip
Please note: If you want to activate the serial function and have also activated multiple invitations in the Access-tab, you will receive a warning in the form of an exclamation mark (see figure 5).

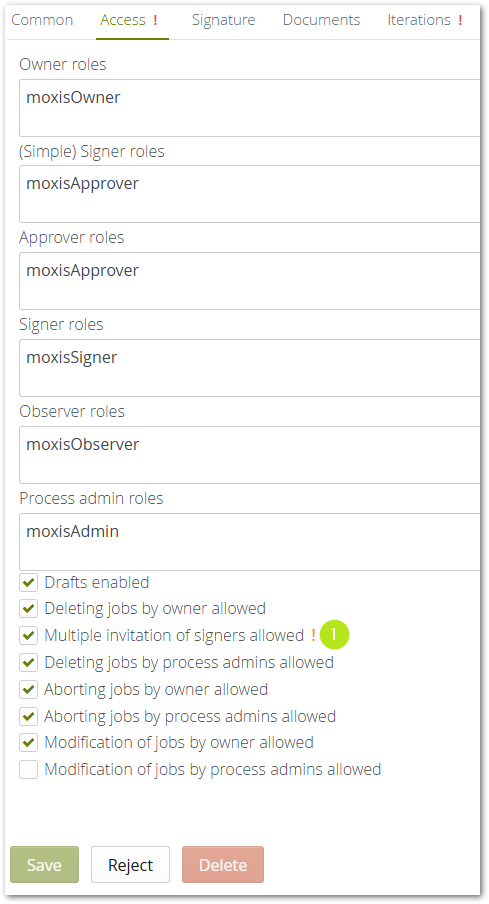

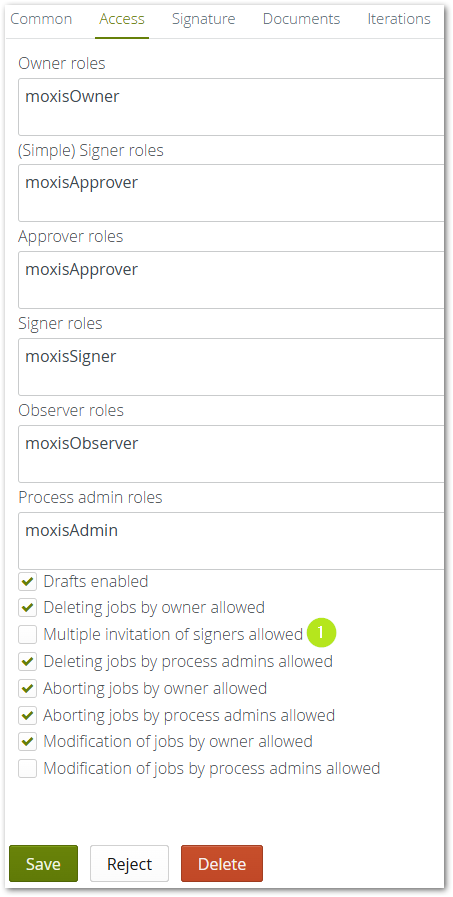

Step 2: If the Multiple Invitations option is enabled in the Access tab (see figure 6 [1]), please disable this option by removing the check mark (see figure 7 [1]).

Step 3: Now you can save the settings in the Iteration tab.

XiTip

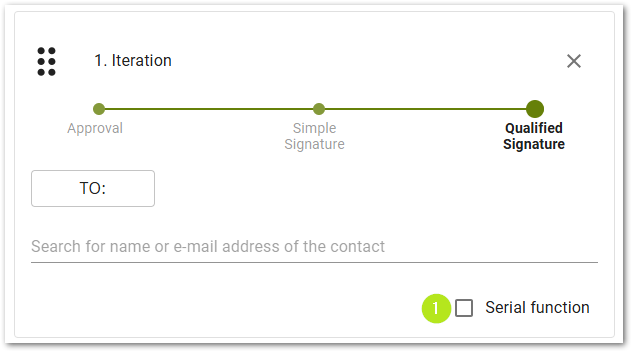

Please note: When creating a job in MOXIS, it is important to check the box for serial function (see figure 8 [1]) so that the feature is activated at the selected iteration level.
