[v4.50] Create, change and manage profiles for qualified signatures

Content

1. Introduction to Profiles for Qualified Signatures

The menu item Profiles for Qualified Signature is divided into two sections:

• Profiles and

• Rules

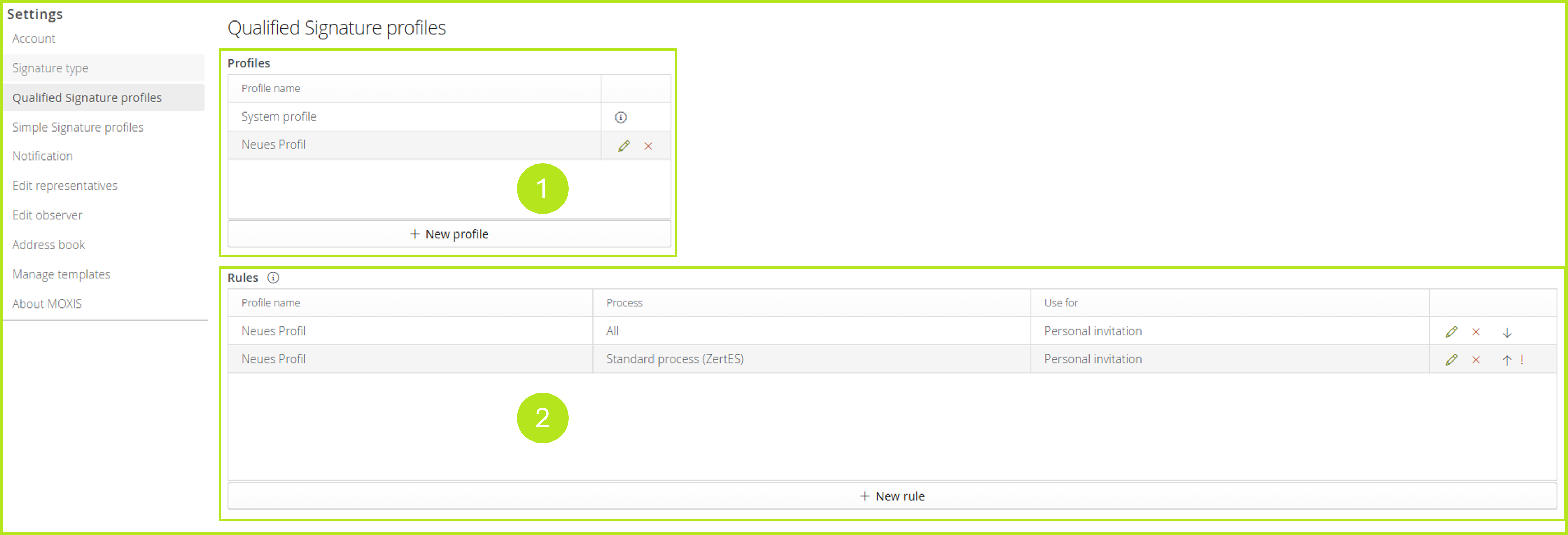

While signature visualisations with captions are created and managed in the section Profiles (see figure 1 [1]), certain rules for when which visualisation is to be used can be defined in the section Rules (see figure 1 [2]). If no profile for qualified signature has been stored, a system profile is used that corresponds to the default setting in MOXIS.

If you have already stored a profile for the qualified signature in a previous version of MOXIS, this is still available in the system. It is used by default for each document that you sign.

1.1 Creating profiles for qualified signatures

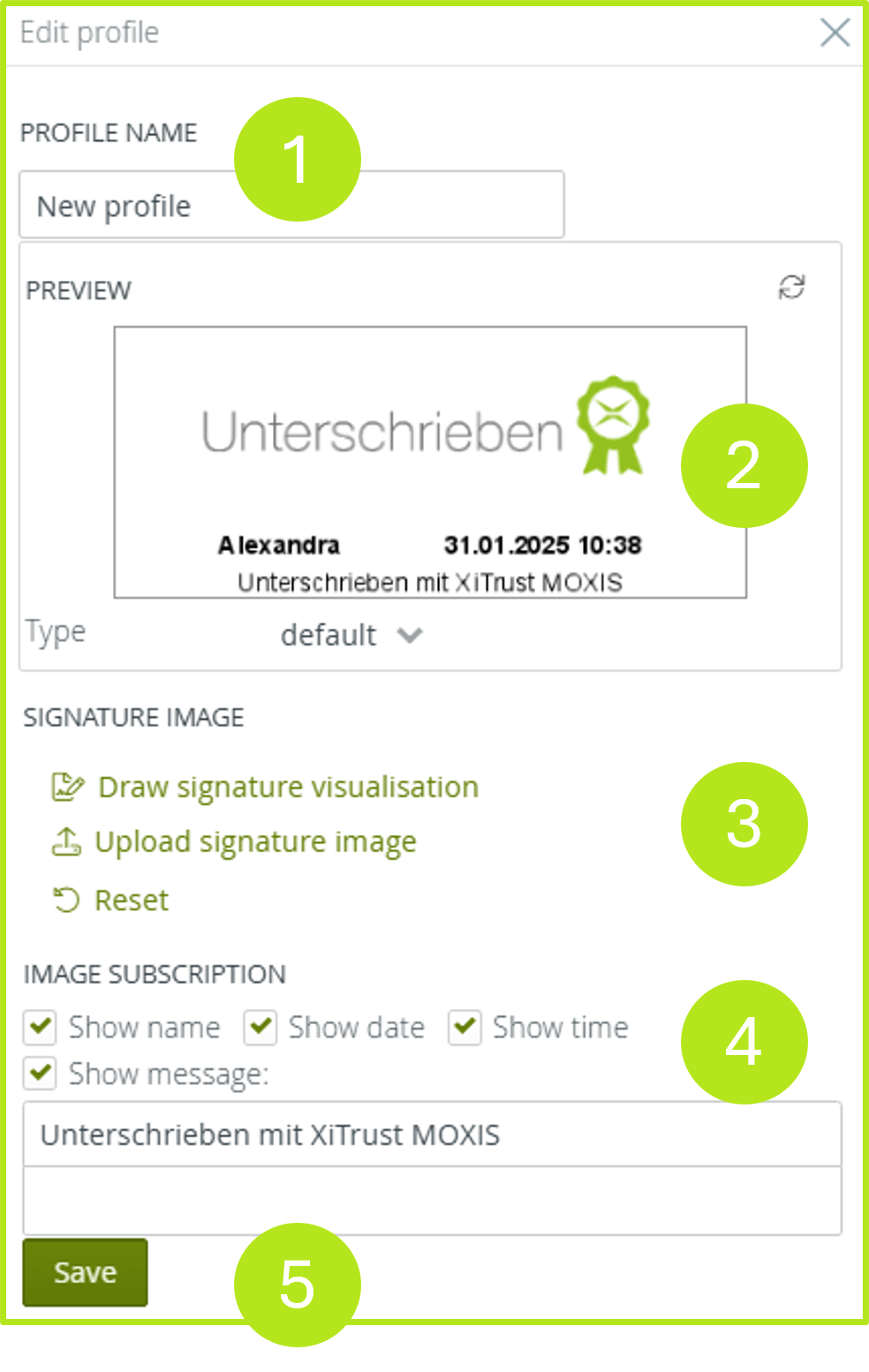

To create a profile with your personal signature image, click on the [+ New profile] button (see figure 1 [1]). A window will then open. Here you can customise your signature as you wish (see figure 2 [1], [3], [4]) and also display a preview of the completed signature image (see figure 2 [2]). You will find details on the individual points in the list below.

(1) Profile name: Enter a profile name here. Please note: This field is mandatory!

(2) Preview: The preview allows you to preview the signature image you have configured.

(3) Signature image: In this section, you have three options.

a. You can draw a signature visualisation yourself. To do this, click on the corresponding option. A window will open in which you can draw your personal signature with the mouse pointer.

b. You can upload your own signature image. Clicking on the corresponding option opens a window in which you can upload your personal signature image.

c. You can use the standard. Click on this option to adopt the standard settings of the system configuration.

(4) Caption: This option allows you to add various parameters to your signature, such as

• Show name

• Show date

• Show time

• Show message

  • Here you can customise the text under the signature visualisation (e.g. sign with XiTrust MOXIS). The field can also be left blank.

XiTip
In addition to the message, a representative who has provided the signature can also be named. To fill in this field as desired, please contact the XiTrust Support Team.

(5) [Save]-button: Clicking on this button saves the changes you have made to the signature.

2. Profile selection in the detailed view of an order for qualified signatures

A job is created as usual. The client does not need any information about which signature visualisation is used by the signing person, as this is mapped via the rules. The profile that is automatically selected based on the rules can be seen in the detail view of the job. The visualisation is also displayed on the document in the preview.

If you want to change the visualisation, you can select a different signature yourself. To do this, select the desired profile in the detailed view of an order using the drop-down menu. The visualisation changes so that you can immediately see how your signature image will be applied to the document.
